Vacuum Hot Presses 2000oC

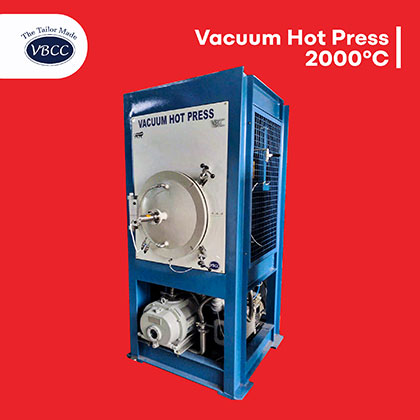

VBCC'S 2000°C VACUUM HOT PRESS

Introducing VBCC's advanced furnace structure, meticulously designed to meet the rigorous demands of high-temperature processing and material testing. This sophisticated system is engineered for precision and reliability, ensuring optimal performance for a variety of industrial and research applications. Our furnace structure is crafted with high-quality stainless steel (SS 316) and features robust construction to withstand extreme temperature and pressure conditions up to 2000°C. This state-of-the-art instrument is essential for applications requiring controlled high-temperature environments, such as diffusion bonding, compaction, and various material science research.

Application: This versatile furnace structure is ideal for a broad range of applications, including high‐temperature processing, material testing, and controlled atmosphere experiments. Its robust design and advanced control features make it an indispensable tool for research and industrial applications alike.

Key Features: The VBCC furnace structure epitomizes high precision and reliability across a broad spectrum of applications. Constructed from robust stainless steel (SS 316), it is engineered to endure extreme temperature and pressure conditions, making it suitable for demanding environments. The furnace features a meticulously designed hot zone and a front-opening model for ease of use. Its insulation is enhanced by water cooling, ensuring safe operation and maintaining skin temperatures just above ambient.

The heating system is equipped with high-density graphite elements capable of achieving temperatures up to 2000°C, complemented by a three-phase AC operation at 415V for rapid heating rates from 1 to 20°C per minute. A microprocessor‐based PID programmer provides precise temperature control, allowing for accurate and consistent thermal conditions.

The furnace's versatility is further augmented by a comprehensive pressure system, including a 10‐ton hydraulic press, making it ideal for diffusion bonding and compaction applications. The integrated vacuum and atmosphere control systems, featuring a reputed diffusion and roots cum double stage rotary vacuum pump, enable meticulous management of the internal environment. This makes the VBCC furnace ideal for rigorous material testing, delivering unparalleled durability and performance essential for both research and industrial applications. Its comprehensive design and advanced features ensure it meets the high standards required for complex scientific and engineering tasks.


1. Total size: 1500(W) x 1500(D) x 1800(H) mm, double wall SS 316 shell, 600mm dia x 800mm length, water-cooled.
2. Hot Zone volume: 125mm x 125mm x 125mm, high-density graphite heating elements, max temperature 2000°C, operating temperature 1900°C, heating rate 1-20°C/min.
3. 10-ton hydraulic press with 100 mm piston stroke, digital pressure gauge with ±10 kgs accuracy.
4. TAIE PID (144 segments) temperature controller, ±1°C accuracy, phase angle controlled thyristor drive.
5. Diffusion and Roots cum Double stage rotary vacuum pump, minimum vacuum of 10‐? mbar, compatible with N2, Ar, Air.
6. 4-ton chiller with 300 liters tank, 100 liters/min circulation, temperature range 5-10°C, Programmable Logical Controller (PLC) and Human Machine Interface (HMI), variable frequency drive.

Please contact VB CERAMIC CONSULTANTS at vbceramic@yahoo.com or call us at 9444012468 to learn more. Elevate your research and production with VBCC's Vacuum Hot Press 2000°C.
