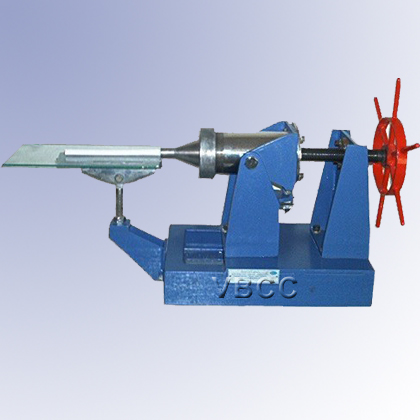

Introducing VBCC's Mechanized Piston Type Extruder, an advanced extrusion machine designed specifically for meta materials and ceramic materials with sufficient plasticity to pass through a die. This powerful and versatile machine is ideal for handling large amounts of clay and other plastic ceramic materials, making it an invaluable tool for the research and ceramics industry.
Key Specifications and Features Robust Frame: The extruder is fixed in a suitable MS frame, ensuring stability and durability. The extrusion height is set at 300mm from the base level, providing a comfortable working height for operators.
Efficient Working Principle: The machine operates by loading material with suitable plasticity through the barrel. A piston, connected to a single screw model, pushes the material through the die orifice, ensuring smooth and consistent extrusion.
Adjustable Speed: The extruder features a speed range of 10 to 120 RPM, adjustable to suit various material requirements and extrusion processes. This flexibility allows for precise control over the extrusion rate.
Powerful Motor: Equipped with a 1.0HP motor and a suitable gear system, the extruder delivers the necessary force to handle even the toughest materials with ease.
High-Quality Barrel and Die: The barrel has a diameter of 75mm and a length of 180mm, made from well-polished stainless steel to ensure smooth material flow and easy cleaning. The die, designed for 10mm diameter cylindrical and tubular objects, is also made from well-polished stainless steel, ensuring high-quality extrusions.
Customizable Dies: The machine comes with one standard die, but it can be fitted with custom-built dies for producing complex shapes. Customers can specify the sizes of the die orifice to meet their specific needs.
User-Friendly Control Panel: A separate control panel is provided, equipped with all necessary arrangements for easy and efficient operation. This user-friendly interface allows operators to adjust the machine settings effortlessly.
Exceptional Performance and Ease of Use
The Mechanized Piston Type Extruder is designed to handle large amounts of clay and other plastic ceramic materials with ultra force and smooth operation. Its simple yet powerful design ensures reliable performance, making it an essential tool for researchers and professionals in the ceramics industry.
Easy Maintenance and Customization
One of the standout features of this extruder is its ease of cleaning. The well-polished surfaces of the barrel and die facilitate quick and thorough cleaning, minimizing downtime and maintenance efforts. Additionally, the ability to fit custom-built dies allows for the extrusion of complex shapes, expanding the machine's versatility and application range.
Supporting Research and Development
This extruder plays a crucial role in the research and development of ceramic materials, aiding in the creation of innovative products and advancements in the field. Its robust construction, efficient operation, and customizable features make it a valuable asset for any research facility or production environment.
In summary, the Mechanized Piston Type Extruder by VB Ceramic Consultants is a powerful, versatile, and easy-to-use machine designed to meet the demanding needs of the ceramics industry. Trust in our expertise to provide the high-quality equipment necessary to drive your research and production forward.
Contact 9444012468 or vbceramic@yahoo.com.
