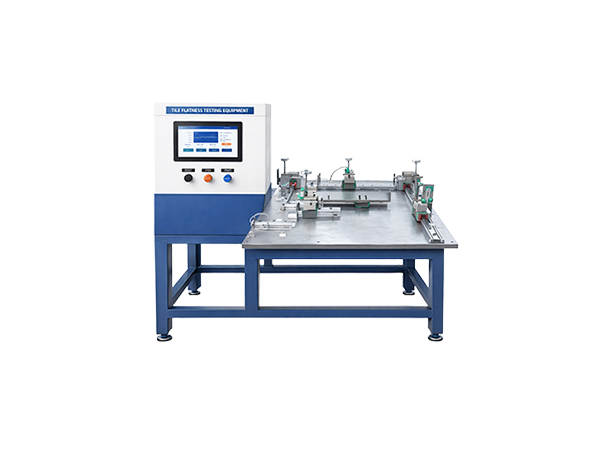

TILE STRAIGHTNESS, SQUARENESS & WARPAGE TESTER

The Tile Dimensional Testing Equipment is a precision inspection system designed to evaluate the dimensional characteristics of ceramic tiles in accordance with ISO 10545-2 standards. The system accurately measures length, width, thickness, straightness of sides, rectangularity, and surface flatness of ceramic tiles. A precision-machined test frame ensures reliable and repeatable measurements, while digital dial gauges provide high-resolution dimensional evaluation. The HMI-based display enables real-time viewing of measured values and test results. Calibration plates are supplied for periodic verification and accuracy assurance. The equipment is designed for quality control laboratories, manufacturing plants, and testing institutions requiring standardized tile inspection. Its robust construction ensures long-term stability and dependable operation in laboratory environments. Optional software integration allows automated data recording and report generation. The system supports compliance verification for ceramic wall and floor tiles and assists manufacturers in maintaining product quality standards.

Applications

• Ceramic Tile Quality Testing
• ISO 10545 Compliance Evaluation
• Tile Manufacturing Inspection
• Wall Tile Dimensional Analysis
• Floor Tile Quality Control
• Production Process Validation
• Research Laboratory Testing
• Third-Party Inspection Services
• Product Quality Assurance Laboratories
• University Research Projects
