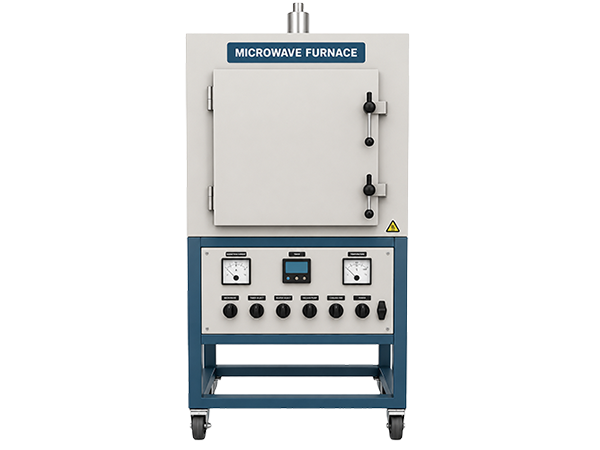

MICROWAVE FURNACE

The VBCC Microwave Furnace is an advanced thermal processing system designed for rapid and energy-efficient heating of materials using microwave energy at 2.45 GHz. Capable of reaching temperatures up to 1600°C, the system enables volumetric heating, significantly reducing processing time while improving material uniformity and reaction efficiency. Equipped with a water-cooled magnetron system, IR-based non-contact temperature sensing, and high-performance insulation, the furnace is ideal for advanced ceramic processing, functional material synthesis, and high-temperature research applications.

Applications

Advanced Ceramic Sintering
Carbothermal Reduction Studies
Functional Material Synthesis
SOFC / SOEC Component Processing
Nanomaterial Heat Treatment
Nanomaterial Heat Treatment
Refractory Material Research
Aerospace Ceramic Development
University and R&D Laboratory Applications
Rapid Thermal Processing
Advanced Material Development

Technical Data

Maximum Temperature	Up to 1600°C
Heating Technology	Microwave Heating (2.45 GHz)
Temperature Controller	Eurotherm PID System
Temperature Measurement	Non-Contact IR Sensor Insulation Zircar SALI Boar
Magnetron Cooling	Water-Cooled System
Chamber Material	Stainless Steel
Susceptor	Silicon Carbide (SiC)
Atmosphere	Air / Vacuum / Controlled Gas (Optional)
Power Control	Adjustable Microwave Power Output
Process Control	Programmable Heating Cycles
Safety Features	Microwave Shielding & Interlocks
Cooling System	Water Cooling for Magnetron
Power Supply	415V AC, 3 Phase, 50 Hz
Working Volume	Customizable

Optional Features

Vacuum Operation Facility

Controlled Atmosphere (N₂ / Ar / H₂)

SCADA Monitoring and Data Logging

Touch Screen HMI Interface

Gas Flow Control System

Customized Chamber Sizes

Additional Safety Interlocks

Remote Monitoring Facility

Advanced Process Recipe Control

Enhanced Cooling and Protection Systems
