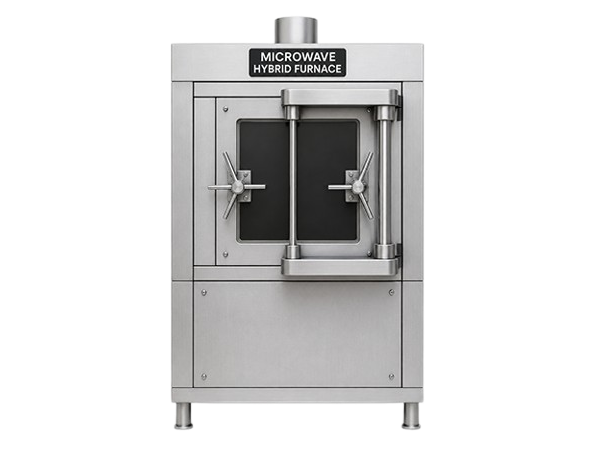

MICROWAVE HYBRID FURNACE

The VBCC Hybrid Microwave Furnace is an advanced thermal processing system combining microwave heating and conventional resistance heating to achieve superior thermal efficiency, rapid heating rates, and excellent temperature uniformity. Designed for high-temperature applications up to 1800°C, the system is widely used in advanced ceramics, functional materials, and research-grade thermal processing. Its integrated PID control, infrared temperature measurement, and robust vacuum/atmosphere capability ensure precise and reliable operation for both laboratory and pilot-scale applications.

Applications

Advanced Ceramic Sintering
Microwave Materials Processing
High-Temperature Research
Refractory Material Development
Functional Material Synthesis
Aerospace Ceramic Components
University and R&D Laboratories
Pilot Scale Process Development
Energy Material Research
Advanced Functional Ceramics

Technical Data

Maximum Temperature	Up to 1800°C
Heating Technology	Hybrid Microwave + Resistance Heating
Controller	Eurotherm PID Programmable System
Temperature Measurement	IR Pyrometer (Non-Contact)
Insulation	Zircar SALI High-Efficiency Insulation
Chamber Construction	Stainless Steel Double-Wall
Magnetron Cooling	Water-Cooled System
Operation Mode	Manual / Automatic
Atmosphere	Vacuum / Controlled Gas (Optional)
Heating Control	Programmable Thermal Profiles
Safety System	Thermal, Vacuum & Microwave Interlocks
Power Supply	415V AC, 3 Phase, 50 Hz
Working Zone	Customizable

Optional Features

Touch Screen HMI Interface

SCADA Monitoring & Data Logging System

Controlled Atmosphere Facility (N₂ / Ar / H₂) Vacuum Processing System

Vacuum Processing System

Gas Flow Control System

Remote Monitoring Facility

Additional Safety Interlocks

Customized Hot Zone Dimensions

PLC-Based Automation System

Advanced Process Recipe Control
