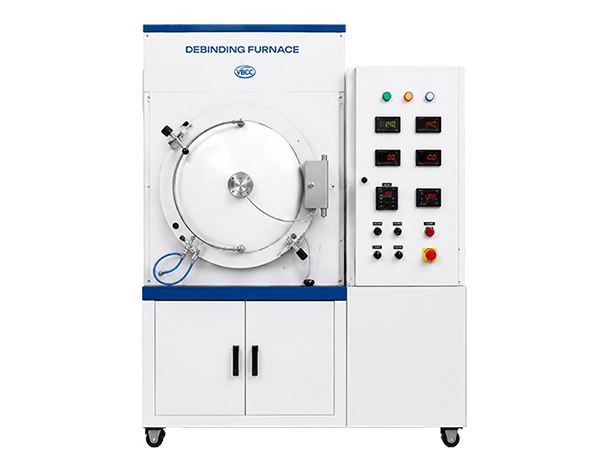

DEBINDING FURNACE

The VBCC Debinding Furnace is a precision-controlled thermal processing system designed for the safe and efficient removal of binders from ceramic, metal, and composite green parts. Engineered for Powder Injection Molding (PIM), Metal Injection Molding (MIM), and advanced additive manufacturing applications, the system ensures uniform debinding with controlled heating, optimized exhaust handling, and stable atmosphere conditions. Its programmable control system and energy-efficient design make it suitable for both research and industrial production environments.

Applications

Ceramic Debinding Processes
Powder Injection Molding (PIM)
Metal Injection Molding (MIM)
Additive Manufacturing Parts Processing
Advanced Ceramics Production
Technical Ceramics Manufacturing
Composite Component Processing
Research & Development Applications
Precision Binder Removal Processes
Industrial Production Lines

Technical Data

Maximum Temperature	As per Process Requirement (Typically 200–800°C)
Operating Temperature	Low to Medium Temperature Range
Heating System	Electrically Heated Elements
Atmosphere	Controlled / Inert / Reactive Atmosphere
Temperature Controller	PID / PLC Based System
Chamber Material	Stainless Steel
Exhaust System	High Efficiency Fume Removal
Process Control	Programmable Heating Profiles
Safety Features	Over Temperature & Gas Safety Interlocks
Cooling System	Natural / Forced Air / Water Cooled (Optional)
Power Supply	230V / 415V AC, 50 Hz
Gas Control	Optional Flow and Purge System
Working Volume	Customized as per Requirement
Monitoring	Optional SCADA Integration

Optional Features

Solvent Debinding System

Gas Flow Control System

SCADA Monitoring and Data Logging

Oxygen Monitoring System

Touch Screen HMI Interface

Customized Chamber Sizes

PLC-Based Automation System

Advanced Exhaust Treatment System

Remote Monitoring Facility

Recipe-Based Process Control
