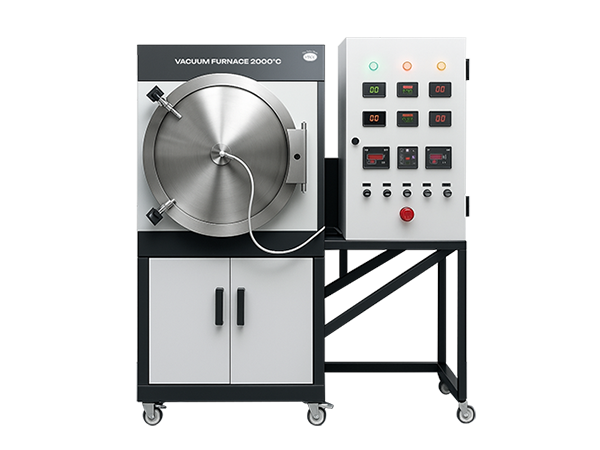

LABORATORY GRAPHITE VACUUM FURNACE

The VBCC Laboratory Graphite Vacuum Furnace is a compact high-temperature vacuum furnace designed for research, development, and advanced material processing applications. Capable of reaching temperatures up to 2200°C, the furnace utilizes high-quality graphite heating elements and efficient graphite insulation to ensure excellent thermal performance and temperature uniformity. The system operates under high vacuum and inert gas atmospheres, making it ideal for ceramic sintering, metallurgical studies, nanomaterial processing, and university laboratory research.

Applications

Research & Development
Ceramic Sintering
Materials Science Studies
Metallurgical Research
Functional Materials Processing
University Laboratories
Nanomaterial Processing
Prototype Development
Advanced Material Characterization
Academic Research Projects

Technical Data

Maximum Temperature	Up to 2200°C
Operating Temperature	Ambient to 2200°C
Heating Elements	Graphite Heating Elements
Insulation	Graphite Felt & Rigid Board
Vacuum Level	High Vacuum Operation
Chamber Type	Water-Cooled Vacuum Chamber
Atmosphere	Vacuum / Inert Gas
Temperature Controller	PID Programmable Controller
Temperature Accuracy	±1°C
Heating Rate	Programmable
Cooling System	Water Cooled
Power Supply	230V/415V AC, 50 Hz
Chamber Capacity	Customized
Safety Features	Over Temperature & Vacuum Protection

Optional Features

Touch Screen HMI

SCADA Software

Data Logging Facility

Additional Thermocouple Ports

Automatic Vacuum Control System

Observation/View Port

Gas Mixing System

Customized Chamber Sizes

Remote Monitoring Facility

Advanced Vacuum Gauge Package
