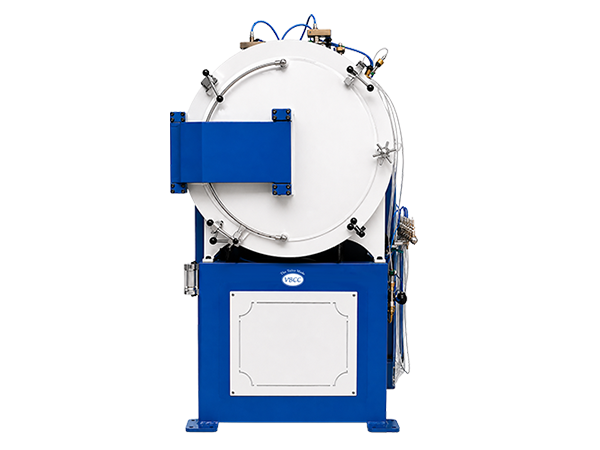

Industrial Graphite Vacuum Furnace

The VBCC Industrial Graphite Vacuum Furnace is a high-temperature vacuum processing system designed for advanced ceramic sintering, powder metallurgy, vacuum heat treatment, and research applications. The furnace utilizes high-density graphite heating elements and graphite insulation to achieve temperatures up to 2200°C under high vacuum conditions. The system is equipped with a water-cooled double-wall chamber, precision PLC/PID temperature controller, and inert gas atmosphere capability, ensuring excellent temperature uniformity, process control, and product quality for industrial and R&D applications.

Applications

Advanced Ceramic Sintering
Vacuum Heat Treatment
Powder Metallurgy
Graphite Component Processing
Aerospace Materials Processing
Functional Ceramics Manufacturing
Refractory Research
Industrial Research & Development Technical Data

Technical Data

Maximum Temperature	Up to 2200^°C
Operating Temperature	500^°C – 2200^°C
Heating Elements	High-Density Graphite
Insulation	Graphite Felt & Rigid Board
Vacuum Level	Up to 10^-6 mbar
Vacuum System	Rotary + Diffusion Pump
Chamber Construction	Water-Cooled Double Wall
Temperature Controller	PLC/PID Based
Heating Zones	Single / Multiple (Optional)
Power Supply	415V AC, 3 Phase, 50 Hz
Data Logging	Optional SCADA System
Chamber Size	Customized as per Requirement
Safety Features	Over Temperature & Vacuum Protection
Cooling System	Water Cooled

Optional Features

Touch Screen HMI

SCADA Monitoring and Data Logging

Automatic Gas Backfilling System

Mass Flow Controllers (MFC)

Multiple Heating Zones

Remote Monitoring Facility

Advanced Vacuum Gauge Package

Customized Hot Zone Dimensions

Special Gas Handling Systems
